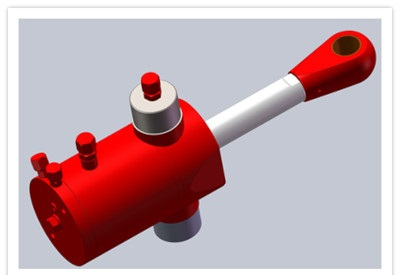

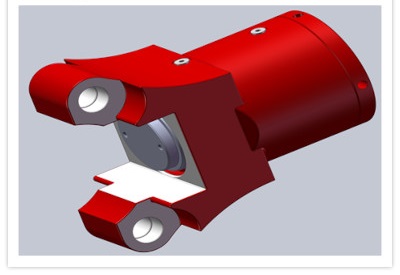

English Custom Cylinder
Manufacturing Capabilities:
Bore Size: 1” ~ 20”
Rod Size: 0.5” ~ 8”
Stroke: 2” ~ 120”
Pressure: up to 70Mpa
Types & Features:
·Welded or Tie Rod | ·Cushioning | ·Aluminum Cylinder |
·Single/Double Acting | ·Locking | ·Stainless Steel Cylinder |
·Accumulator | ·Clamping | ·Nitro Rod |
·Piggy-back | ·Counterweight | ·High Strength |
·Synchronizing (rephasing) | ·Steering | ·Weight Saving |
·Position Sensing (smart) | ·Brake | ·Corrosion Resistant Coating |
·Spherical | ·Spring | ·Ultra-Low/High Temperature |
·Integrated Valves | ·Lifting/tilt | ·Velocity Fuse |
Any conceptional idea, specifications or rough drawing will lead to a new custom cylinder. Just reach us directly by Our experienced engeering team will be happy to be at your service at any time.

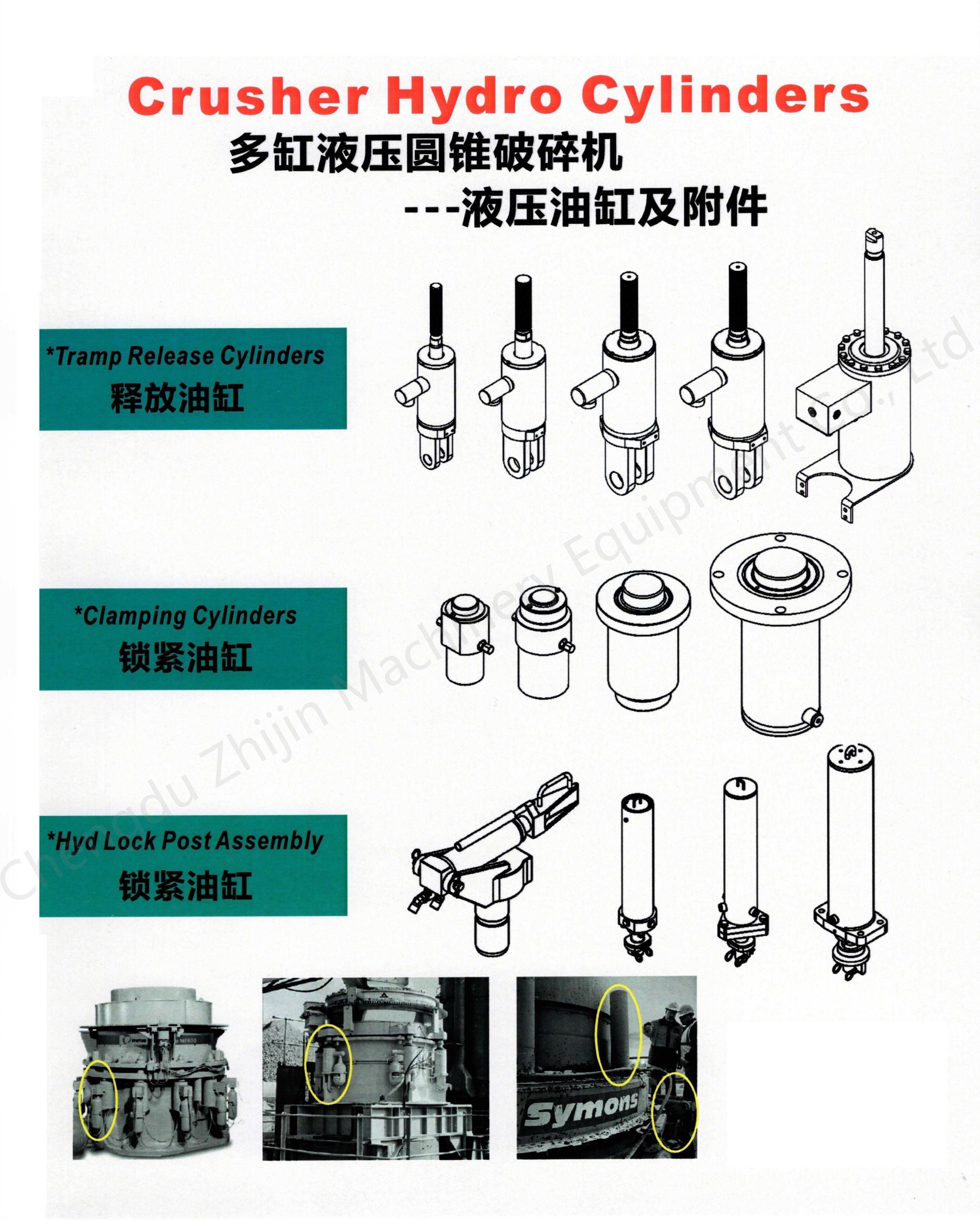

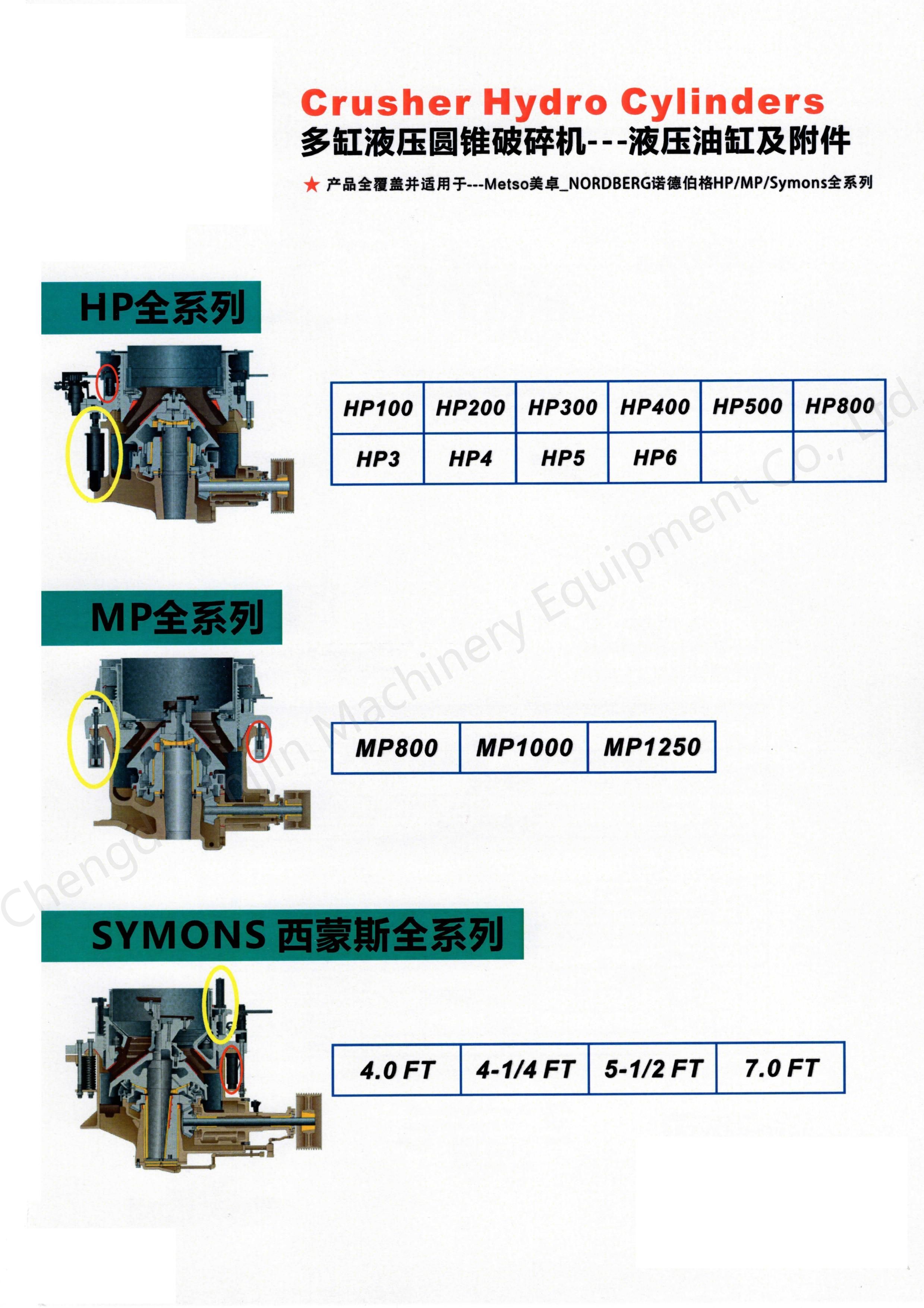

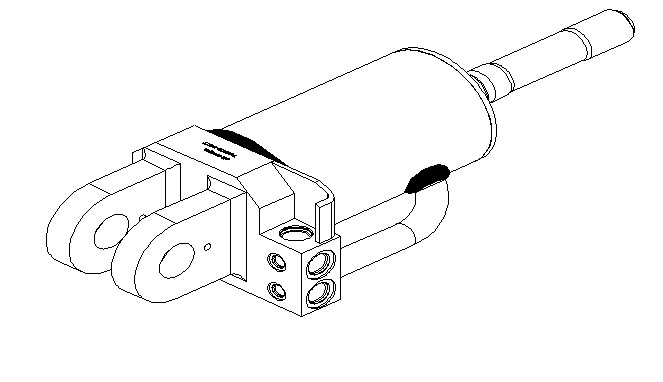

Typical Case --- Crusher Cylinder
Double Acting
Valve Control
Working Pressure --- 3000 psi
Testing Pressure --- 4500 psi
Burst Safty Factor --- 3:1
Temperature --- -20 ~ +80 ℃
Pulse Pressure --- High Frequency
